Wired Connection

Important

  • If printer is performing cleaning, print head alignment, or other processes, wait for the process to finish, before starting setup.

Note

  1. Press the HOME button to display the HOME screen.

    HOME screen

  2. You will need an Ethernet cable (sold separately).

    figure: Ethernet cable

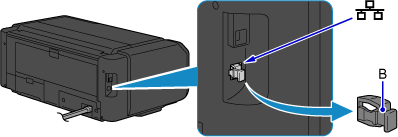

  3. Remove the Cap (B) from the port located on the left side at the back of the printer.

    figure: Remove the cap

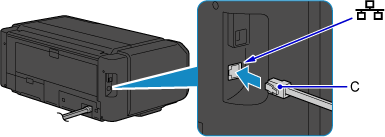

  4. Connect the printer and a network device (router, etc.) with an Ethernet cable (C).

    Do not connect to any other port.

    figure: Connecting Ethernet cable

  5. Select LAN settings on the HOME screen.

    HOME screen: Select LAN settings

  6. Select Wired LAN.

    LAN settings screen: Select Wired LAN

  7. Select Enable/disable Wired LAN.

    Wired LAN screen: Select Enable/disable Wired LAN

  8. Select Enable.

    Wired LAN screen: Select Enable

  9. Press the HOME button.

    HOME screen

    The network connection setup is now complete.

    Once connection is complete, Wired LAN enabled icon appears on the screen.

    If performing setup with software, return to the software and proceed with the installation.

    Windows

    Click Setup icon (or Smart Connect icon ) on the taskbar at the bottom of the screen, follow the on-screen instructions to proceed with setup.

    macOS

    Click Setup icon on the Dock at the bottom of the screen, and follow the on-screen instructions to proceed with setup.
